Advance Series
Price range: $1,100.00 through $1,300.00
High Airwatt and quiet central vacuum unit, display remote that it’s easy to
controll. Elegent design and top qualit on the market…
Advance Central Vacuum Units
Advance are the most innovative centralized vacuum units for domestic use.
They are characterized by many advanced technical features, such as the Interchange system which allows the choice between cyclonic filtration or bag filtration.
Installation Area
Advance vacuum units can be installed in residential buildings with the following characteristics:
- Surfaces between 300 and 600 m²
- Suitable for 1 user
- Pipe network Ø 50 mm / Ø 2″
- 220 / 240 Vac supply
- Non-continuous use for household dust vacuum
- Air exhaust to the outside
- Installation possible in utility rooms, basements and protected balconies
Advance Selection Table
| MODEL | Recommended Surface | Article | Recommended Vacuum Inlets | Users |
|---|---|---|---|---|
| Advance 300 | 300 m² | 111701 | 8 | 1 |
| Advance 500 | 500 m² | 111702 | 18 | 1 |
| Advance 600 | 800 m² | 111703 | 24 | 1 |
Technical Features

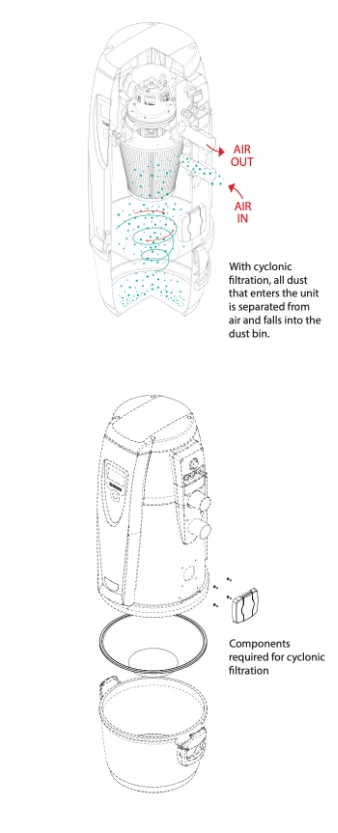

Cyclonic Filtration
Dust is separated from the air through an internal cyclonic effect and falls directly into the collection bin. The conveyor cone prevents dust from returning to the filter.

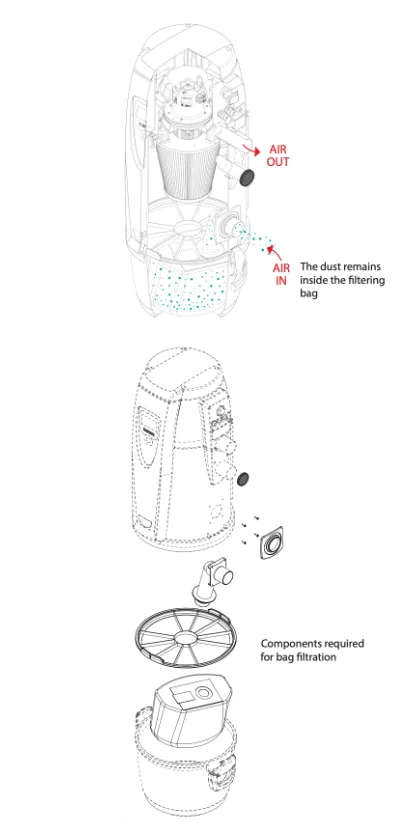

Bag Filtration System
The microfiber bag ensures a high filtration level and eliminates the need for filter cleaning. When full, it can be easily replaced.
Main Technical Advantages

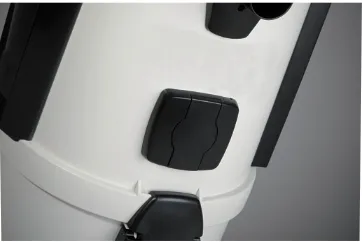

Integral Service Inlet
Allows cleaning directly near the vacuum unit by simply inserting the hose.

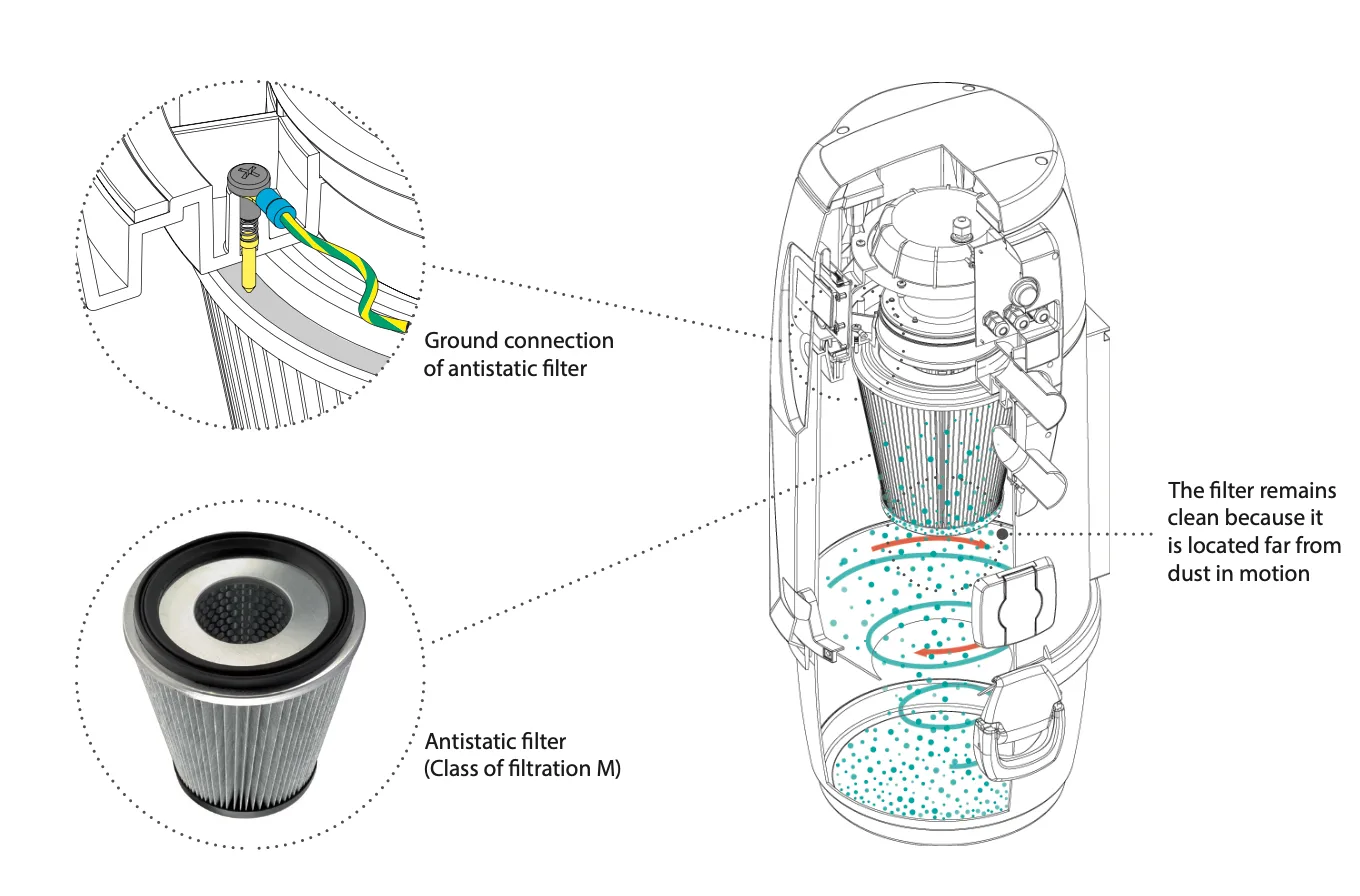

Low Maintenance Filter
Conical filter made with polyester and aluminum fiber, washable and static discharge protected.

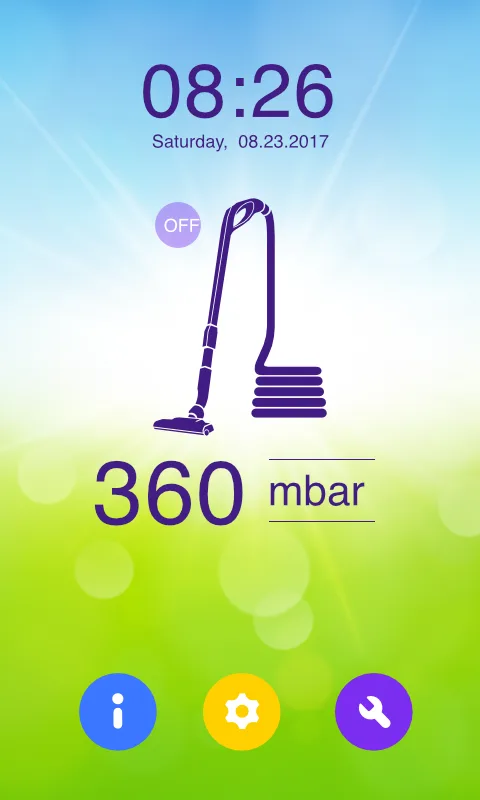

Smart Management Software
Equipped with a 5″ touch display and third-generation microprocessor for monitoring operating conditions.
Energy Saving
New high efficiency motors reduce energy consumption by more than 20%.

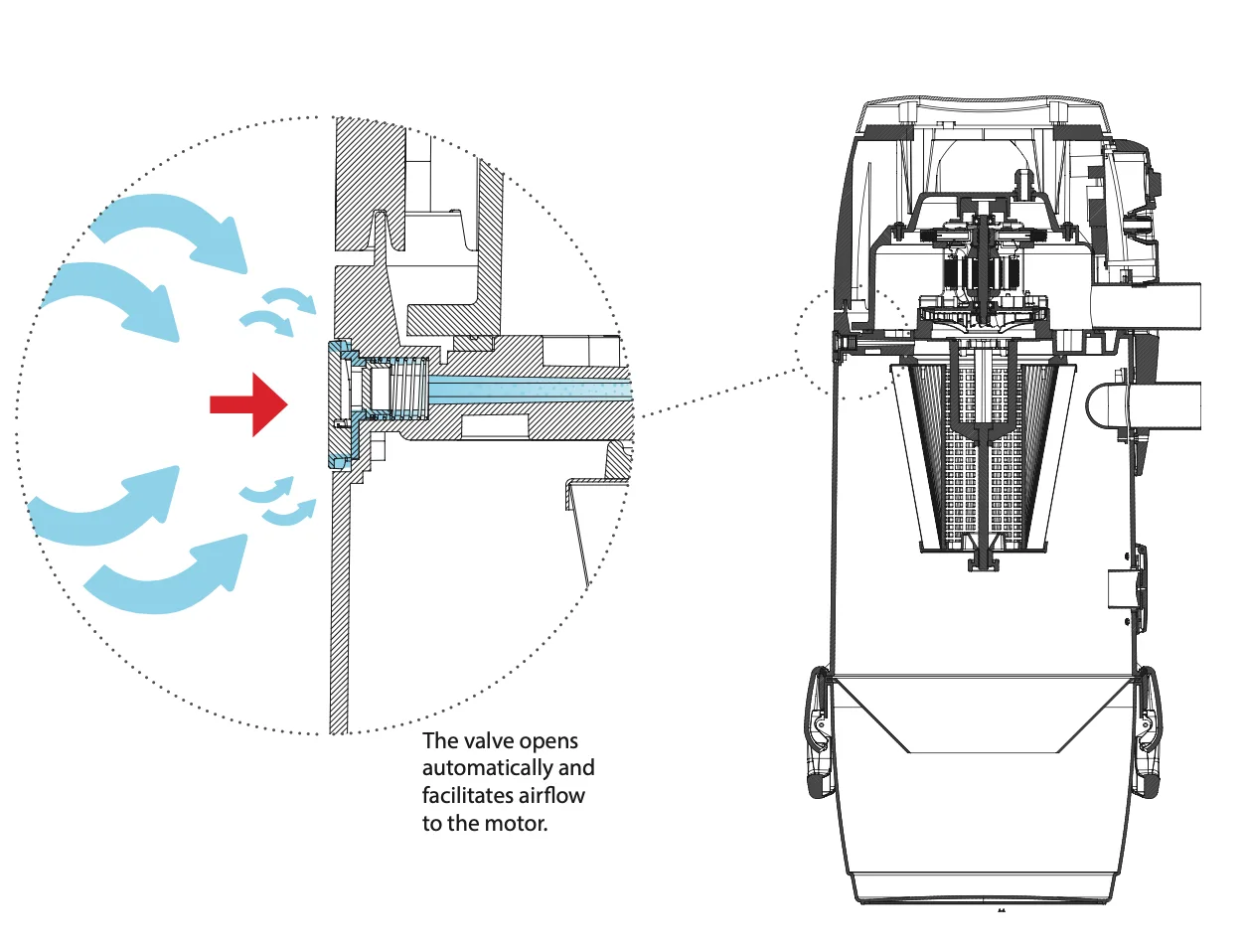

Breaker Valve Protection
Protects the motor by allowing air entry when the inlet is closed.

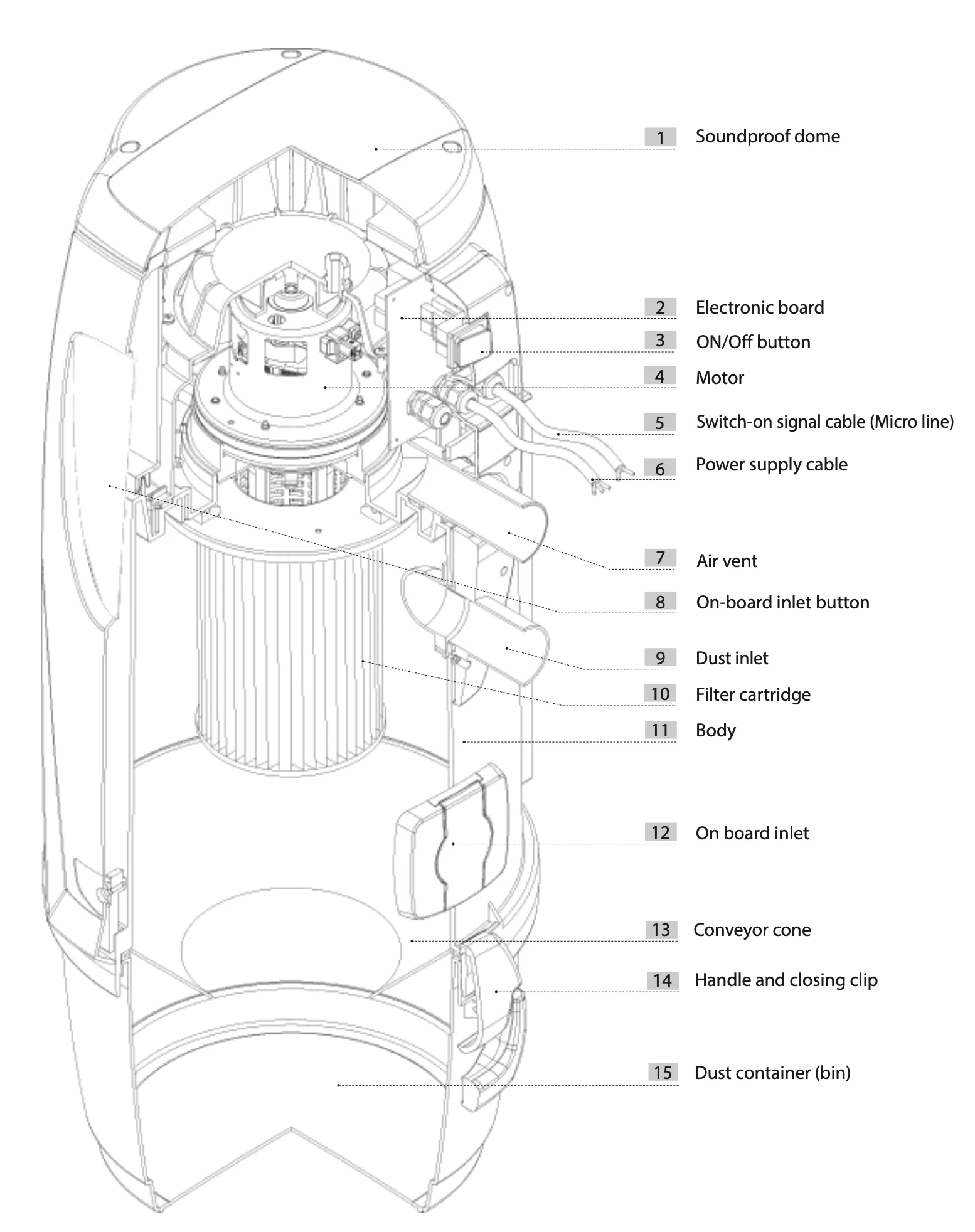

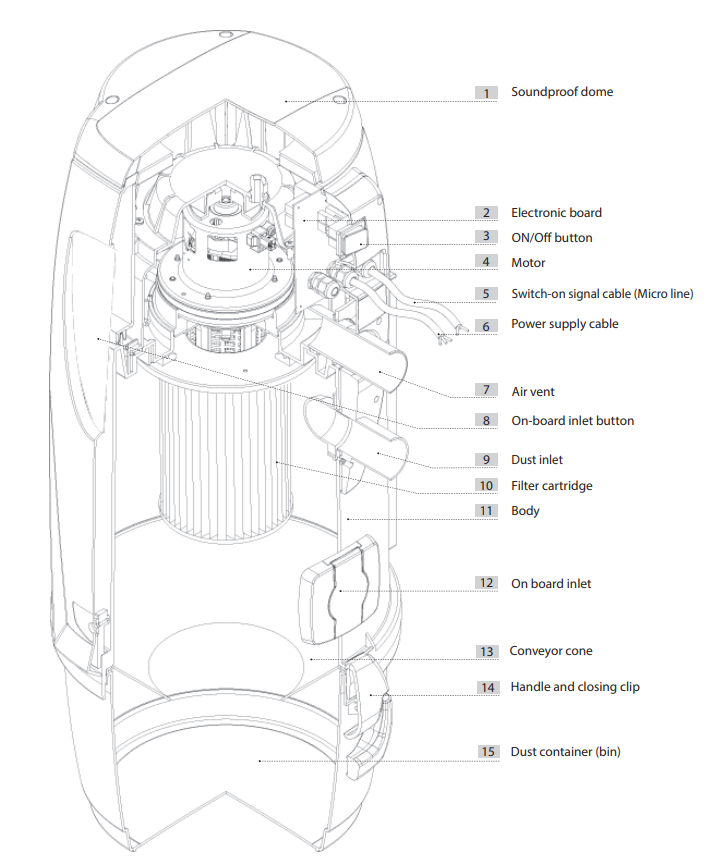

Advance Section

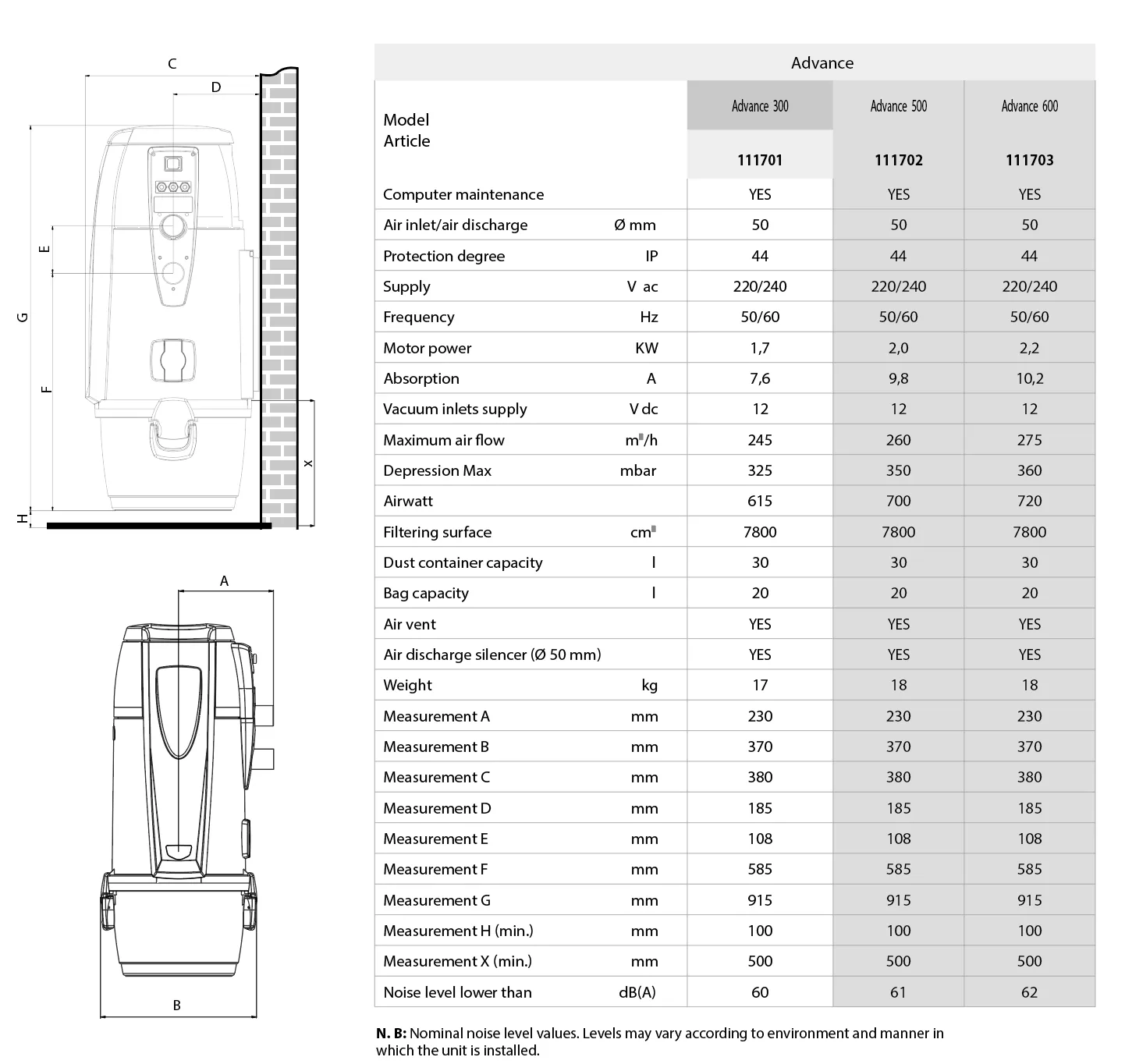

Measurements and Technical Data

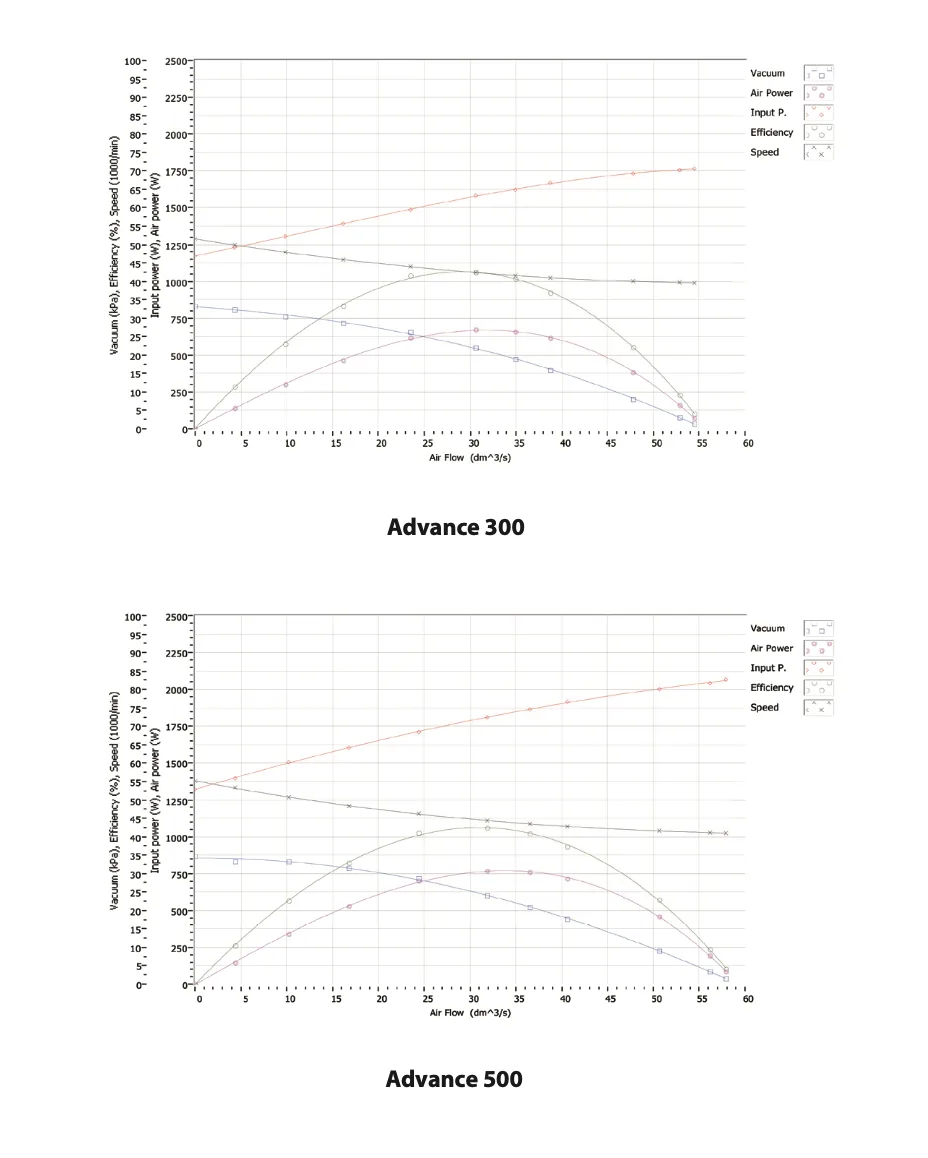

Performance Graphs
| Weight | 17.5 kg |
|---|---|
| Dimensions | 100 × 100 × 75 cm |
| Power | , , |
